ar Applicable Scenarios
· Limited space
· Rapid deployment needs
· Modular or scalability needs
· Experimental and pilot projects
· Mobile or temporary locations
· Efficient emergency response needs

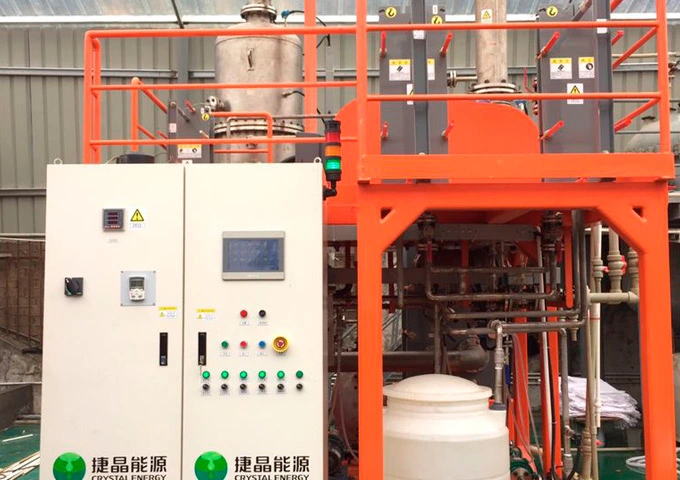

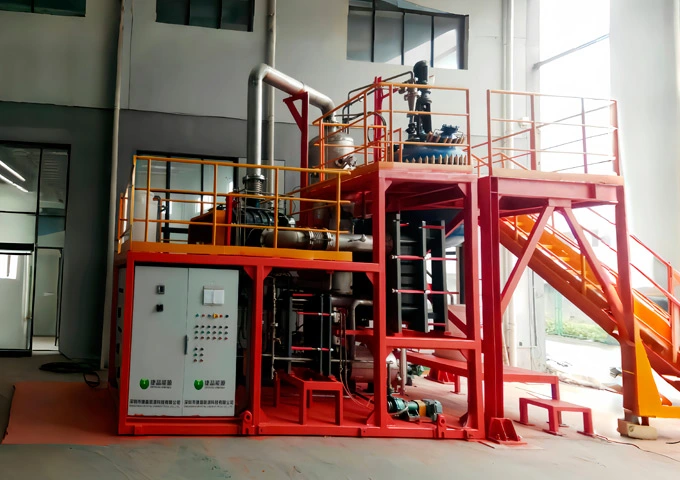

Skid-mounted mobile evaporator adopts complete skid-mounted modular design, which is flexible and efficient, featuring easy installation and quick maintenance, and greatly improving production efficiency and reducing operating costs. The skid mounted unit is suitable for various industrial scenarios with limited space, rapid deployment demands, modular or scalability demands, experimental and pilot projects, mobile or temporary locations. Whether it is wastewater treatment, concentration extraction, or chemical production, skid-mounted small evaporators can provide stable and reliable evaporation solutions.
Product model | Annual processing capacity (kg) | Effluent volume（kg/h） | Dimensions（L*W*H）mm | Capacity (kW) | Hourly energy consumption(kW.h) |
CE1000 | 7,920,000 | 1000 | 4300*2600*4500 | 110 | 90 |
CE2000 | 15,840,000 | 2000 | 4500*2600*5000 | 220 | 180 |
CE3000 | 23,760,000 | 3000 | 5000*2800*6500 | 260 | 270 |
CE4000 | 31,680,000 | 4000 | 6000*3000*7000 | 410 | 360 |
The above data is provided as an example of skid mounted systems for treating complex high-salt and high-COD wastewater.
The design of the skid-mounted evaporator is meticulously tailored to accommodate the unique requisites of its users, encompassing processing capacity, energy efficiency, and ease of operation, thereby catering to the diverse demands of various industries and application scenarios.

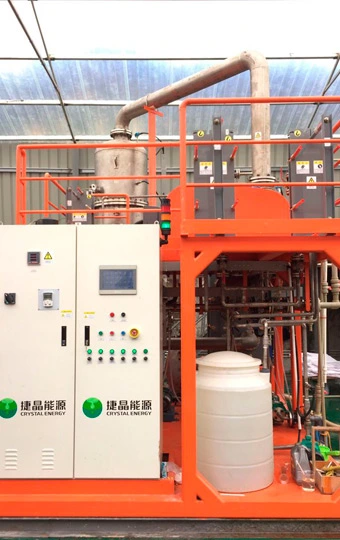

The core advantages of GeekingTech's Skid Mounted Evaporator:
1.Standardized supply, reliable and stable
2. Installation-free on site, short delivery time
3. High thermal efficiency and low energy consumption
4. Small footprint, easy to manage
Save over 80% Energy, over 90% recycled Cooling water, and over 50% Floor space.

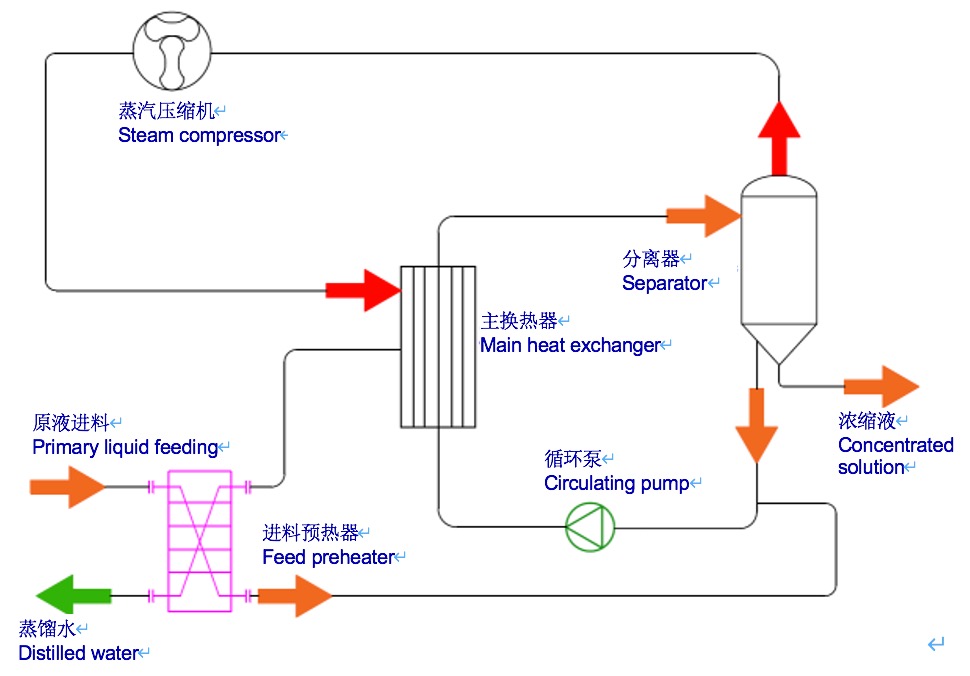

Skid-mounted evaporator is an integrated and modular MVR evaporation system that installs the evaporator unit and its auxiliary equipment on the same framework or platform for quick on-site deployment and flexible operation. The working principle of skid mounted units is to compress and heat up the secondary steam generated by itself, increase the enthalpy, fully utilize its latent heat, and use it as a heat source to reheat the feed liquid in the system evaporator to achieve concentration, desalination, and COD removal, thus little or no additional auxiliary heating is needed during operation. And the condensate water generated by the secondary steam after heat exchange can be recycled and reused, with no discharge of additional steam.
The design of skid-mounted mobile evaporator allows for quick installation and disassemble, making it suitable for temporary or mobile processing facilities. In addition, the modular design of skid-mounted evaporator produced by industrial evaporator supplier GeekingTech can also be flexibly configured and expanded according to production needs to meet the needs of different industries and applications.
· Limited space
· Rapid deployment needs
· Modular or scalability needs
· Experimental and pilot projects
· Mobile or temporary locations
· Efficient emergency response needs
· Industrial wastewater treatment and recovery
· Concentration, separation, and recovery in the chemical industry
· Harmful wastewater treatment in the environmental protection industry
· Concentration, purification, and solvent recovery in the pharmaceutical industry
· Food and beverage industry
· Seawater desalination
· Dehydration and desalination of petroleum
· Papermaking black liquor treatment
· Textile printing and dyeing wastewater treatment and solvent recovery
· Waste emulsion treatment
· Landfill leachate treatment
· Electroplating waste liquid treatment
· Wet smelting
· Desulfurization and denitrification wastewater from power plants
· Material production, wastewater treatment, and battery recycling in the lithium battery industry
· Other concentration and evaporation, material separation, evaporation and crystallization, resource recovery and treatment.
